AWS Infrastructure Deployment

This guide walks you through deploying Kindo infrastructure on AWS using the kindo-infra Terraform module.

Quick Start

1. Set up your deployment directory:

   cd kindo-modules/examples/kindo-infra-aws-example
   cp terraform.tfvars.example terraform.tfvars

2. Configure terraform.tfvars with at minimum:

   project_name    = "mycompany"
   environment     = "production"
   aws_region      = "us-west-2"
   deployment_size = "small"
   vpc_cidr        = "10.0.0.0/16"
   domain_name     = "kindo.mycompany.com"

3. Deploy:

   export AWS_PROFILE=your-aws-profile
   terraform init
   terraform plan
   terraform apply

Core Configuration

Project Identification

project_name = "mycompany"     # Namespace for all resources
environment  = "production"    # dev, staging, or production
aws_region   = "us-west-2"     # AWS region

Use lowercase with no spaces or special characters. Keep project_name consistent across environments.

Deployment Sizing

deployment_size = "small"
production_mode = false

Size	Best For	Nodes	RDS	Est. Monthly Cost
dev	Development/Testing	1—3 t3.medium	db.t3.micro	~$150—200
small	Small production	2—5 t3.large	db.t3.small	~$400—500
medium	Standard production	3—8 t3.xlarge	db.t3.medium	~$800—1000
large	High traffic	5—15 m5.xlarge	db.m5.large	~$2000—3000
xlarge	Enterprise	10—30 m5.2xlarge	db.m5.xlarge	~$5000+

Setting production_mode = true enables deletion protection on RDS and prevents accidental terraform destroy.

Network Configuration

vpc_cidr = "10.0.0.0/16"

The module automatically creates public, private, and database subnets across availability zones.

Feature Toggles

enable_gpu_nodes = false     # Enable for self-hosted models
enable_monitoring = true     # CloudWatch monitoring
enable_bastion = false       # Bastion host for debugging

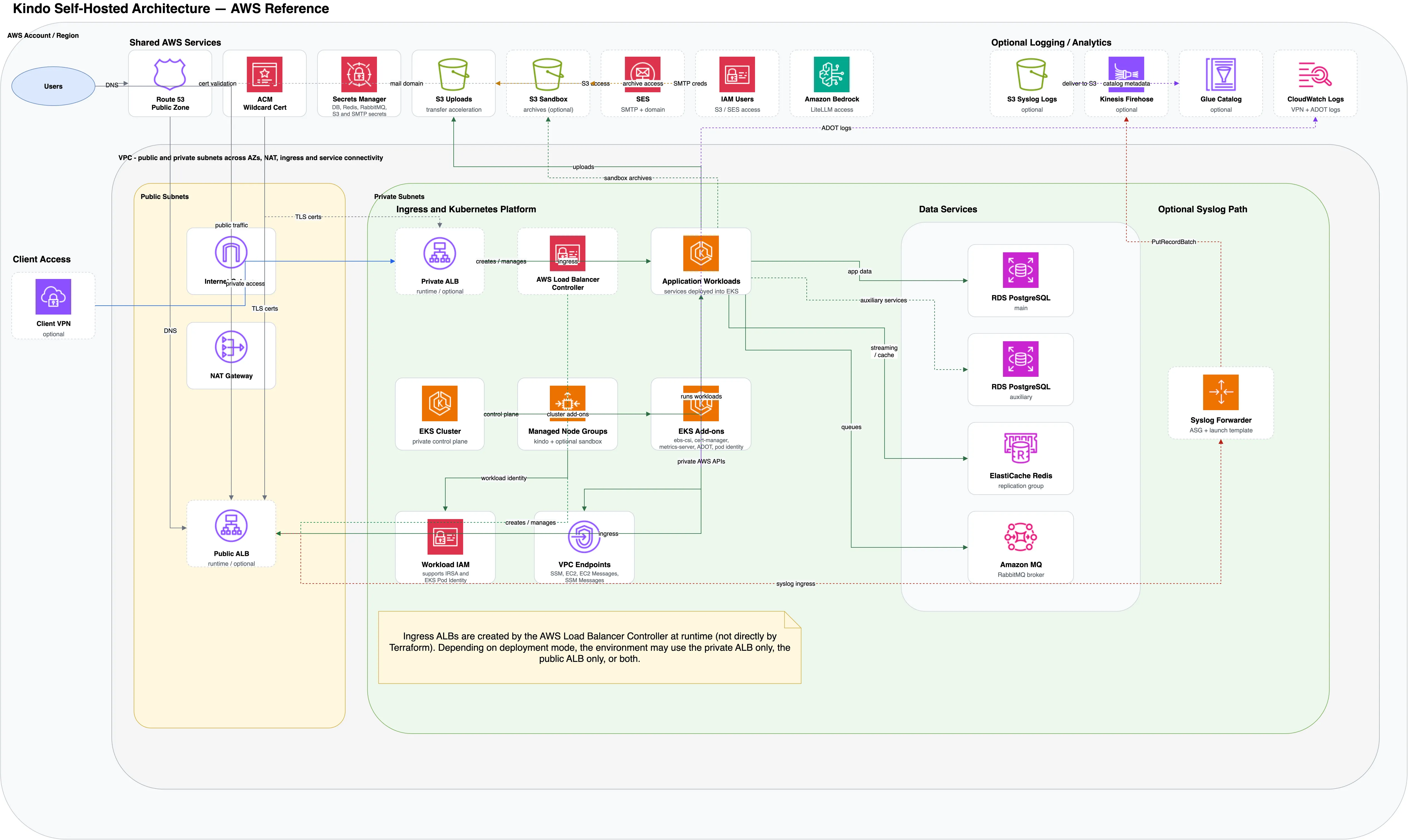

What Gets Created

The kindo-infra module provisions:

• VPC with public, private, and database subnets across 3 AZs
• EKS cluster with managed node groups
• RDS PostgreSQL (multi-AZ in production)
• ElastiCache Redis cluster
• Amazon MQ (RabbitMQ) broker
• S3 buckets for uploads, audit logs, and backups
• KMS keys for encryption
• Security groups and network ACLs
• CloudWatch log groups and alarms

Post-Deployment Verification

# Verify EKS access
aws eks update-kubeconfig --name <cluster-name> --region us-west-2
kubectl get nodes

# Verify RDS
aws rds describe-db-instances --query 'DBInstances[*].DBInstanceIdentifier'

# Verify Redis
aws elasticache describe-cache-clusters

# Verify S3 buckets
aws s3 ls | grep kindo

Terraform Outputs

After deployment, save these outputs for use in subsequent modules:

terraform output -json > infra-outputs.json

Key outputs include: EKS cluster name, VPC ID, subnet IDs, RDS endpoint, Redis endpoint, RabbitMQ endpoint, and S3 bucket names.

Next Steps

Proceed to AWS Secrets Manager to configure secrets, then AWS Peripherals for supporting services.
