Integrations Setup

Kindo supports integrations using Nango for authentication and the MCP protocol for agent access to external systems. Most MCP servers are built in-house and run by the customer as part of a self-managed installation, though a growing number of official hosted MCPs can be accessed directly.

Tip

This page covers infrastructure setup. For governance of who can use which integration and which tools (per-user-group scoping, shared connections, etc.), see Tool Action Access Controls. For the enterprise pattern of isolating an integration’s identity to a single team — so other teams cannot see or use the connection — see Integration Identity Isolation.

Nango Setup

Connecting Nango to Your Installation

1. Set Environment Variables in Kindo

Variable	Description	Required Services
NANGO_SECRET_KEY	Shared secret key for Nango integrations	api, task-worker-ts
NANGO_URL	Host on the Ingress pointing to the nango service (must match your Nango dashboard URL)	api, task-worker-ts
API_INTEGRATION_WEBHOOK_BASE_URL	The URL of your API service with /webhook/integration-connection appended (e.g., https://<API_HOST>/webhook/integration-connection). This is where third-party services (Linear, Jira, etc.) send webhook events.	task-worker-ts
NEXT_PUBLIC_NANGO_API_URL	Same as NANGO_URL	next
NEXT_PUBLIC_NANGO_CONNECT_URL	Host on the Ingress pointing to the nango-connect-ui service	next

2. Set Environment Variables in Nango

1. Set the Callback URL to ${NANGO_URL}/oauth/callback.

2. Configure the webhook:

   • In the Nango dashboard, go to Environment Settings > Webhook URLs.
   • Set Primary URL to ${API_BASE_URL}/webhook/nango (where API_BASE_URL matches the API service environment variable).
   • Select the Prod environment.
   • Toggle ON Auth: new connection webhooks. All other toggles can be OFF.

For self-managed Kindo installs, this secret is managed by the installer and applied to both Nango and the Kindo services that use it.

Configuring New Integrations

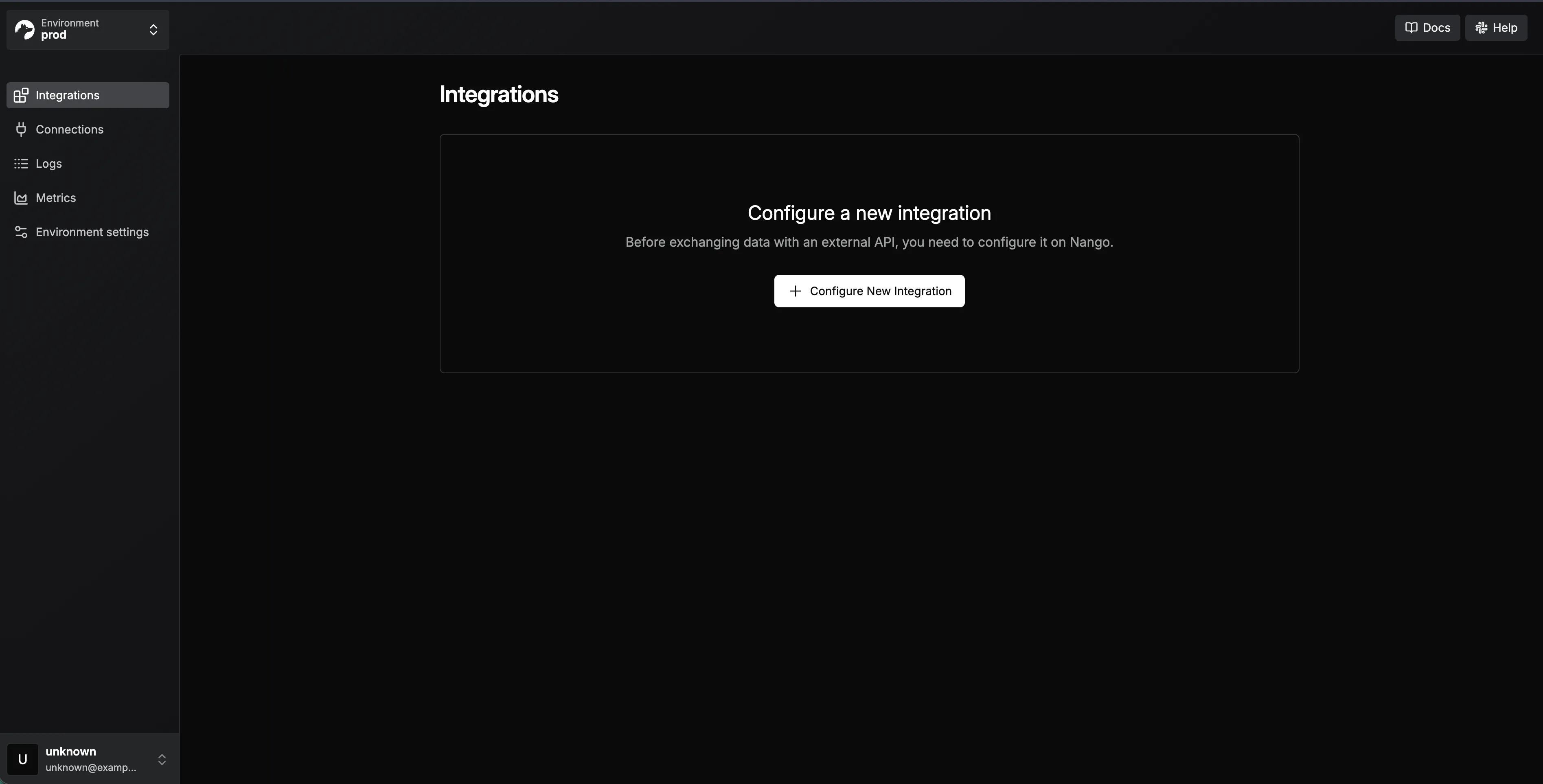

In the Nango dashboard: Integrations > Configure New Integration > Select the desired integration and auth method.

Supported Integrations

Integration	Auth Method	Notes
Azure DevOps	BASIC
Box	OAUTH2
Cisco Catalyst	BASIC
Cisco FMC	BASIC
Cofense Triage	OAUTH2_CC
CrowdStrike Falcon	OAUTH2_CC
Datadog	API_KEY
Dropbox	OAUTH2	Requires file and account scopes
GitHub	OAUTH2	Scopes: repo, read:org, user
GitLab	OAUTH2	Scopes: api
Google Docs	OAUTH2	Requires documents and drive scopes
Google Drive	OAUTH2	Requires userinfo and drive scopes
Google SecOps	OAUTH2	Configured per connection
Grafana	API_KEY
Graylog	BASIC
Jira	OAUTH2	Requires Jira API and User Identity API scopes
Linear	OAUTH2	Scopes: admin, read, write
Microsoft Entra ID	OAUTH2
Microsoft OneDrive	OAUTH2	Requires Files scopes
Microsoft Outlook Calendar	OAUTH2	Requires Microsoft Graph calendar and contacts scopes
Microsoft Teams	OAUTH2	Requires Teams and Chat scopes
Neo4j	BASIC
NVD	API_KEY
SailPoint	OAUTH2_CC
SAP S/4HANA	BASIC	OData and RFC variants
ServiceNow	OAUTH2_CC
Slack	OAUTH2	Requires channels, chat, and users scopes
Smartsheet	OAUTH2	Requires sheets, folders, and workspaces scopes
Sourcegraph	API_KEY
Splunk	API_KEY
Sumo Logic	BASIC
Tenable	API_KEY

Tip

For Microsoft integrations (Entra ID, Defender, Teams, Purview, Intune, etc.), see Enterprise Application Permissions for the full list of API permissions each app registration requires.

OAUTH2 Integrations

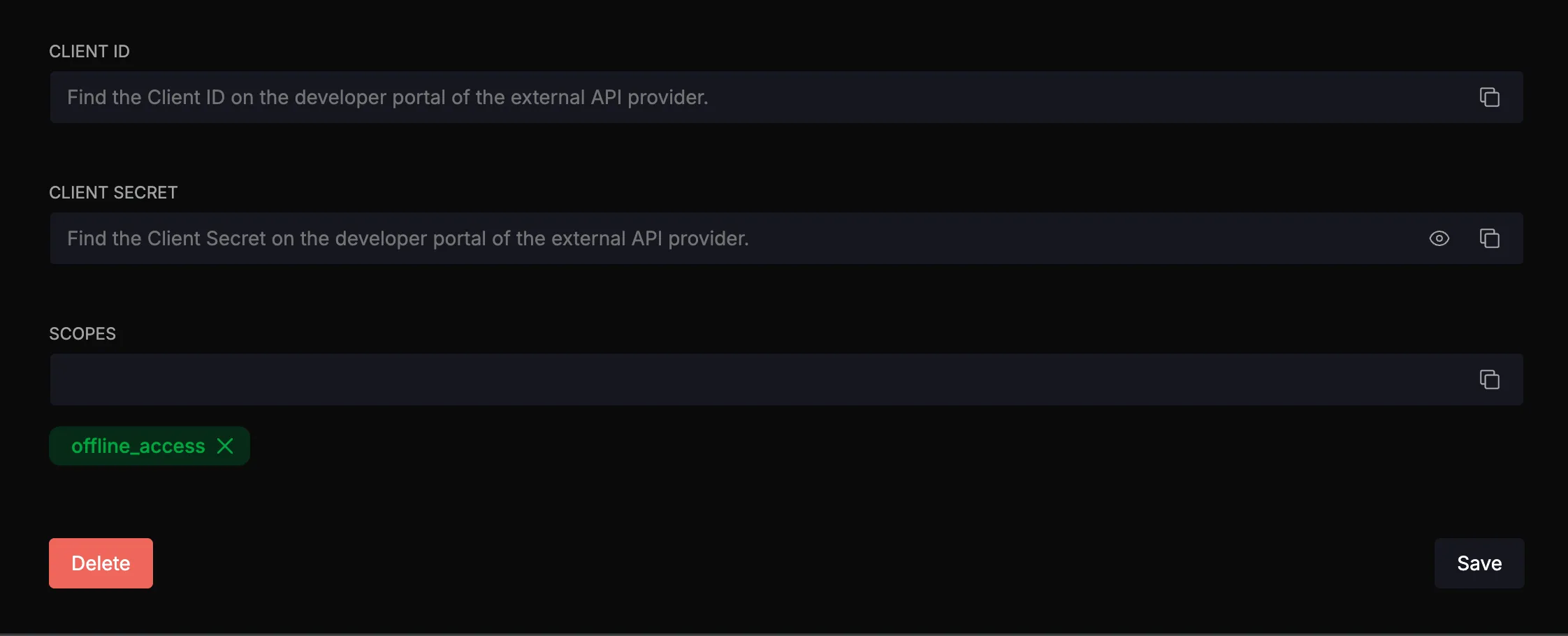

For OAUTH2 integrations, first create an OAuth app within the target integration. The callback URL should be <NANGO_URL>/oauth/callback. Then configure the Client ID and Client Secret in Nango with the values from the integration provider.

BASIC, API_KEY, and OAUTH2_CC Integrations

No modification to integration configurations is necessary — all required credentials are specified when creating the connection in the Kindo platform.

Provider-Specific Setup Guides

Use the links below to create an OAuth app or obtain credentials for each provider. For OAUTH2 integrations, set the callback URL to <NANGO_URL>/oauth/callback.

OAUTH2

Provider	Setup Guide
Box	Box Developer Documentation — OAuth 2.0 Setup
Dropbox	Dropbox App Console
GitHub	Creating an OAuth App
GitLab	OAuth Provider
Google Drive	OAuth 2.0 Protocol
Jira	Jira REST API Authentication
Linear	Linear OAuth 2.0 Authentication
Microsoft (OneDrive, Entra ID, Teams, Outlook)	Microsoft Identity Platform — Register an App
Slack	Slack API — Creating an App

OAUTH2_CC (Client Credentials)

Provider	Setup Guide
CrowdStrike Falcon	See instructions below
ServiceNow	Connect to ServiceNow

CrowdStrike Falcon — Client Credentials Setup

Docs: CrowdStrike OpenAPI

1. Log into your CrowdStrike Falcon console.
2. In the left sidebar, navigate to Support and Resources > API Clients and Keys.
3. Create a new API client.
4. Set the Base URL to match your CrowdStrike region (e.g., US-1, US-2, EU-1, or US-GOV-1).
5. Click the client ID row to view and configure scopes. Grant the scopes required by your Kindo integration.
6. Copy the Client ID and Client Secret — these are entered when creating the connection in the Kindo platform.

API_KEY

Provider	Setup Guide
Grafana	Service Accounts
NVD	Request an API Key
Tenable	Authorization

BASIC

Provider	Setup Guide
Azure DevOps	Personal Access Tokens
Sumo Logic	Access Keys

Integration Webhooks

Integration webhooks are required for using Integration Event triggers. Direct Webhook URL triggers do not require this configuration.

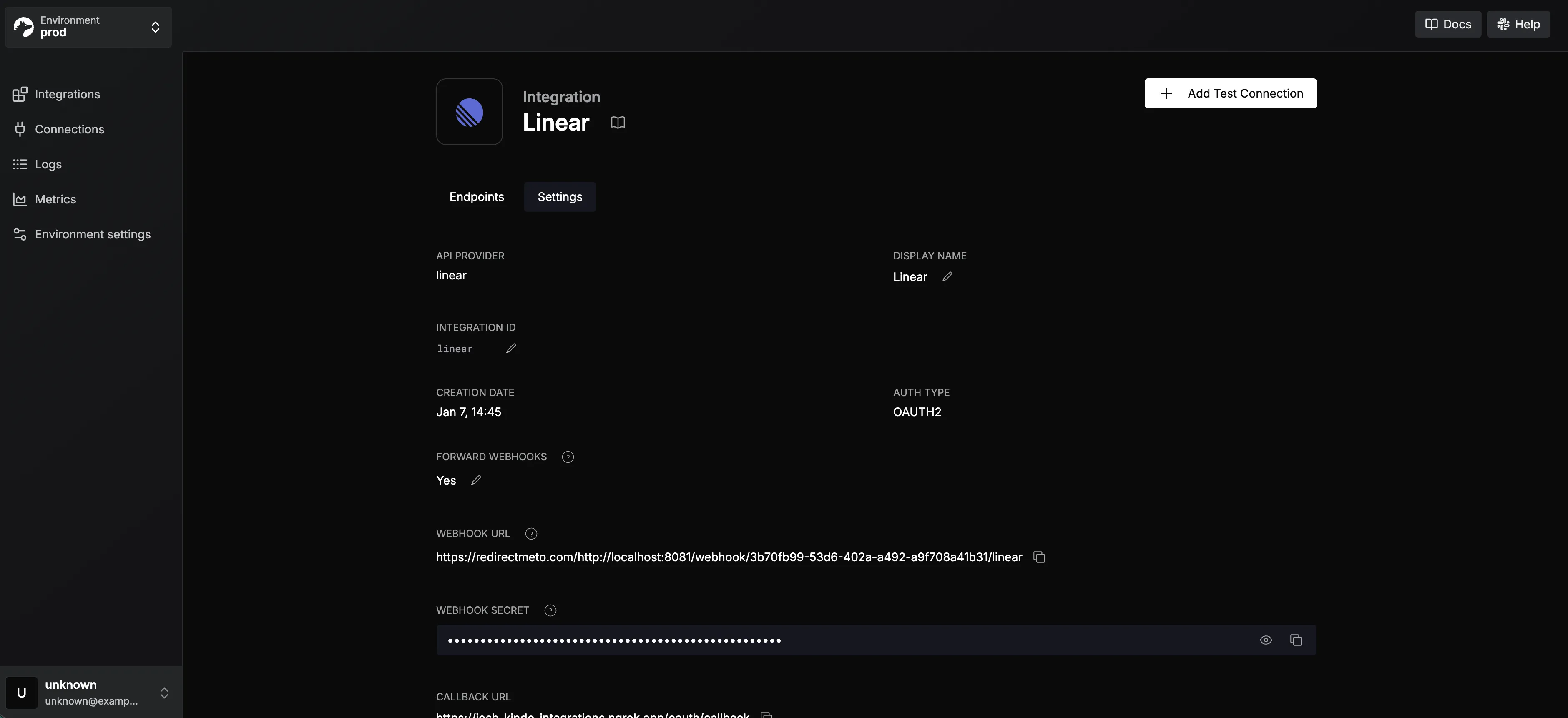

Linear Webhooks

1. In Linear, go to Settings > API and select the OAuth app created earlier.

2. Click the three dots > Edit Application.

3. Enable the Webhooks toggle.

4. Enter <API_SERVICE_URL>/webhook/integration-connection/linear as the webhook URL.

5. Select Issues under “Data change events”.

6. Copy the webhook signing secret.

7. In Nango, paste the secret into the Webhook Secret input and save.



Note

Connections created before configuring webhooks must be reauthenticated (deleted and reconnected in the Kindo UI).

Jira Webhooks

No additional setup is needed for Jira webhooks.

Syncing Integrations with Kindo

After configuring integrations in Nango, sync them with your Kindo application:

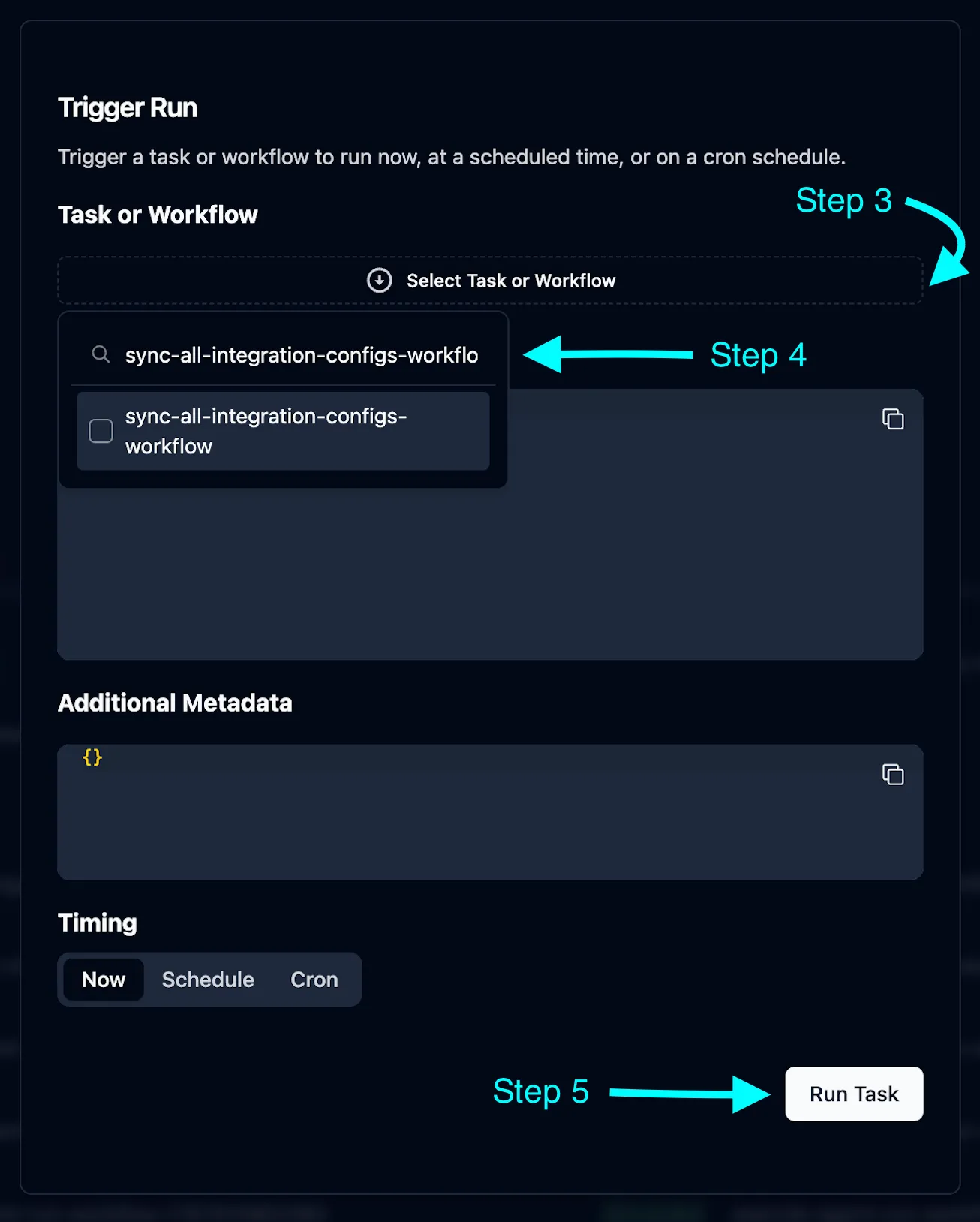

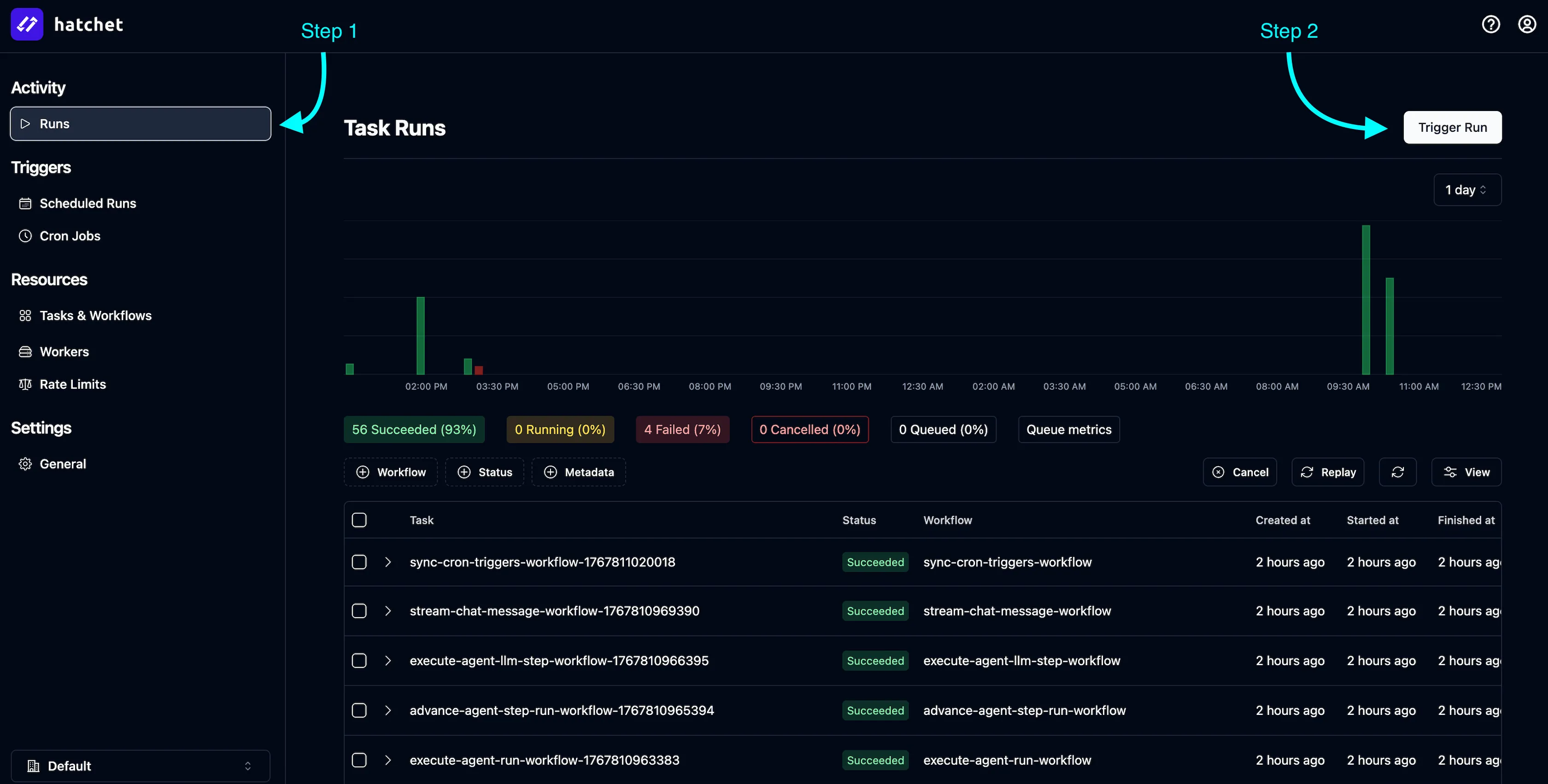

1. In the Hatchet dashboard, go to Activity > Runs.

2. Click Trigger Run.

3. Under Task or Workflow, select sync-all-integration-configs-workflow.

4. Click Run Task.

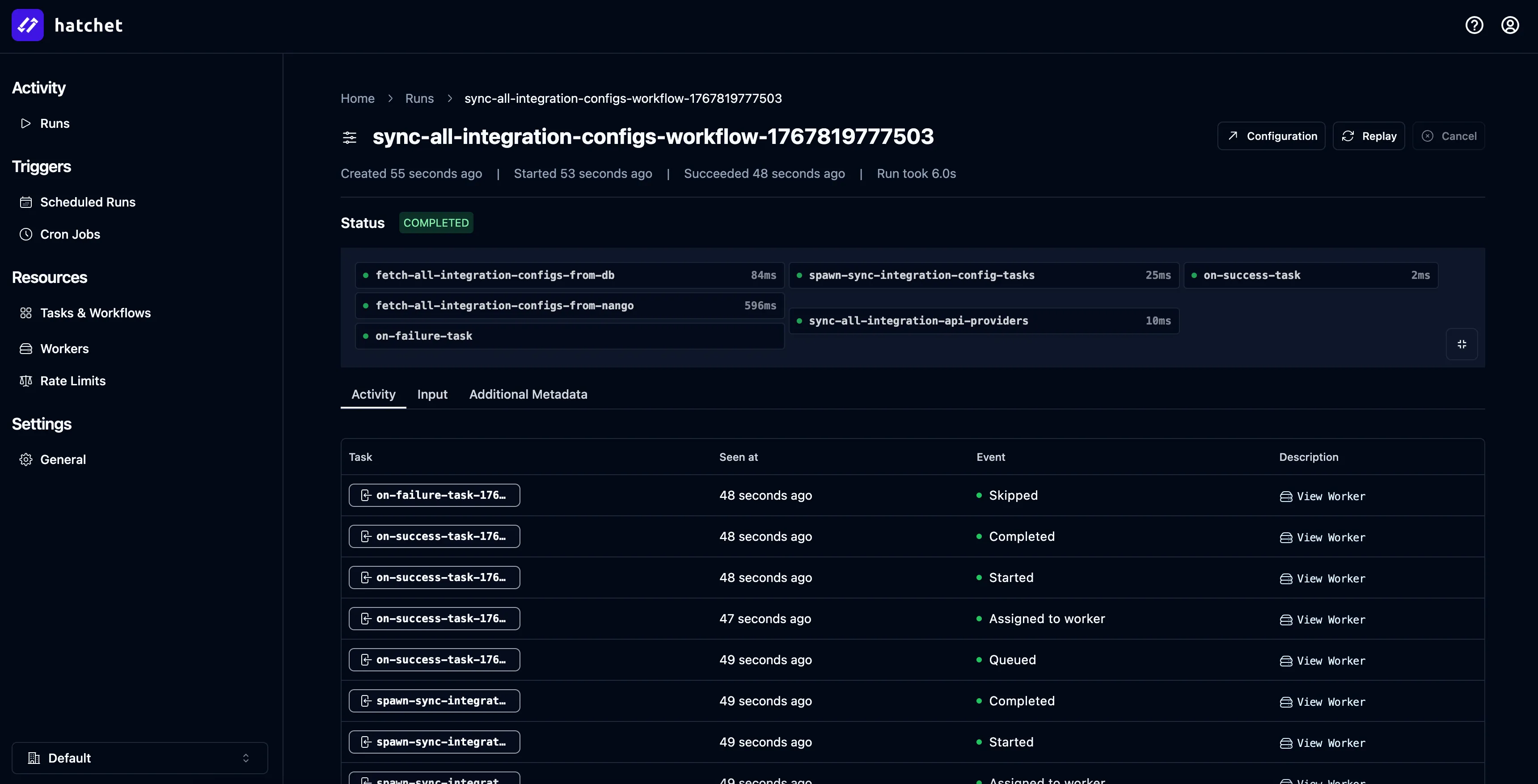

Verify the sync completed successfully:

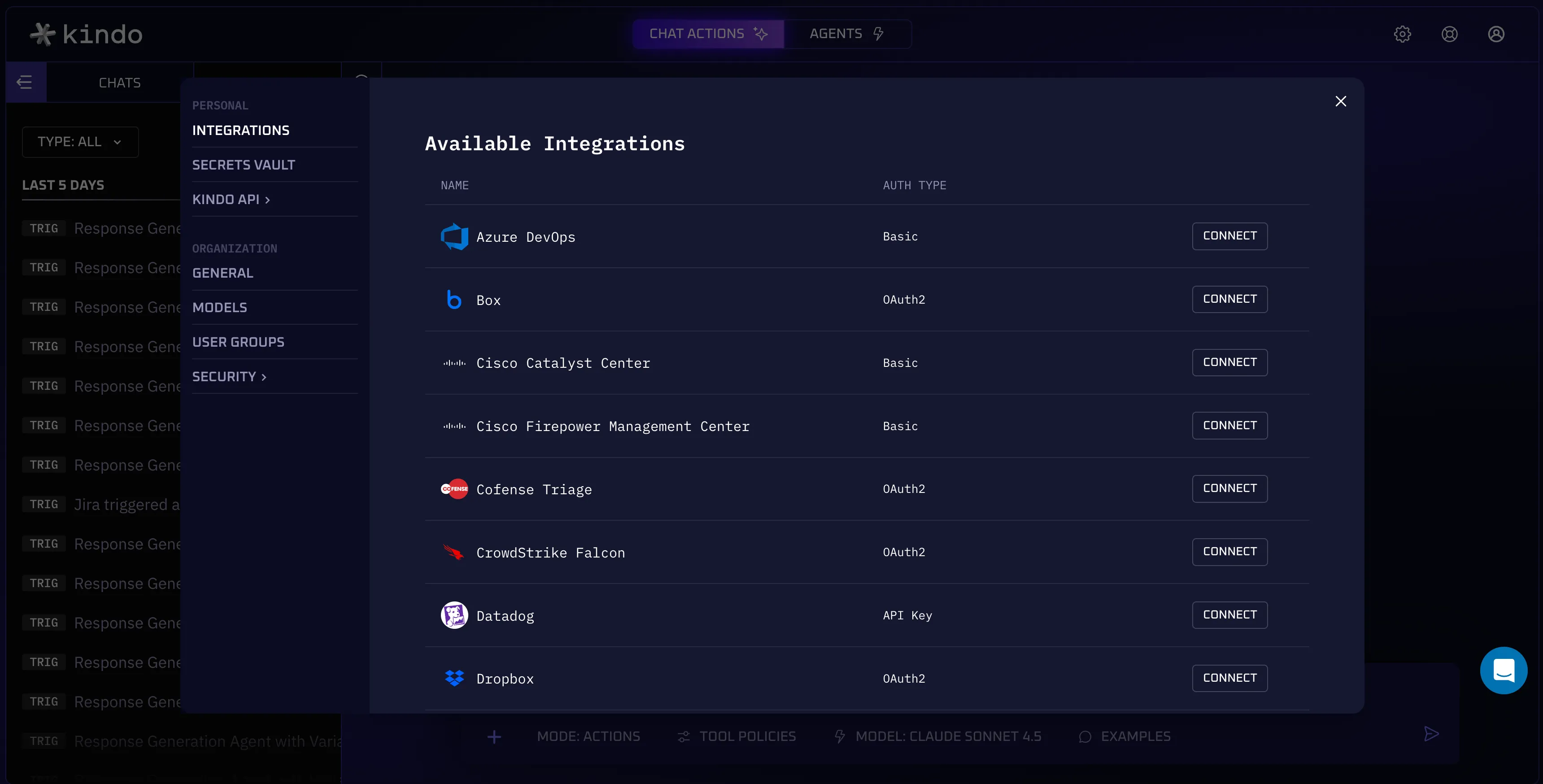

Then confirm in the Kindo app under the Command Center > Manage Your Integrations:

MCP Server Setup

After syncing Nango integrations, connect MCP servers:

1. Verify the integration configs appear in the IntegrationConfig database table.
2. Update the mcpServerUrl field for each integration you want to enable.
3. For integrations with webhook support (Jira, Linear), set supportsWebhooks to true.

Example MCP server URLs (adjust for your namespace):

http://mcp-grafana.mcp:80/mcp
http://mcp-box.mcp:80/mcp
http://mcp-unified.mcp:5050/linear/

The exact URL format depends on your Kubernetes namespace configuration and service naming conventions. The stored URL is called exactly as written — include the full path: /mcp for standalone MCP servers, or the integration’s mount path (e.g. /linear/) for servers hosted by the unified MCP service.
