Single Sign-On (SSO) Setup

This guide walks through setting up Single Sign-On (SSO) via SSOReady for Self-Managed Kindo.

SSOReady Components

SSOReady consists of four services:

Service	Port	Purpose
ssoready-auth	9080	Authentication service
ssoready-api	9081	API service
ssoready-app	9082	Web application
ssoready-admin	9083	IT admin self-serve interface

Environment Variables

ssoready-auth

• AUTH_SERVE_ADDR
• AUTH_DB — PostgreSQL connection string
• AUTH_BASE_URL
• AUTH_DEFAULT_ADMIN_TEST_MODE_URL
• AUTH_SAML_STATE_SIGNING_KEY — Generate with openssl rand -hex 32

ssoready-api

• API_SERVE_ADDR
• API_DB — PostgreSQL connection string
• API_DEFAULT_AUTH_URL
• API_DEFAULT_ADMIN_SETUP_URL
• API_SAML_STATE_SIGNING_KEY — Must match AUTH_SAML_STATE_SIGNING_KEY
• API_GOOGLE_OAUTH_CLIENT_ID (optional, for Google login)
• API_MICROSOFT_OAUTH_CLIENT_ID, API_MICROSOFT_OAUTH_CLIENT_SECRET, API_MICROSOFT_OAUTH_REDIRECT_URI (optional, for Microsoft login)

ssoready-app

• APP_SERVE_PORT, APP_APP_URL, APP_PUBLIC_API_URL, APP_API_URL
• APP_GOOGLE_OAUTH_CLIENT_ID (optional)
• APP_MICROSOFT_OAUTH_CLIENT_ID, APP_MICROSOFT_OAUTH_REDIRECT_URI (optional)

ssoready-admin

• ADMIN_SERVE_PORT, ADMIN_API_URL

Kindo Frontend (Next)

• SSOREADY_API_URL, SSOREADY_AUTH_URL
• SSOREADY_API_KEY, SSOREADY_OAUTH_CLIENT_ID, SSOREADY_OAUTH_CLIENT_SECRET (configured after setup)

Initial Setup

Run Migration

Only needed once during initial setup:

docker run --network=host ssoready/ssoready-migrate:sha-<version> \
  -d '<postgresql_url>' up

Configure Login Methods

Update the optional authentication variables in ssoready-app and ssoready-api for your desired login methods (Google, Microsoft, etc.).

Setup Steps

1. Enable the management API for the SSOReady organization:

   -- Find the org
   SELECT id, entitled_management_api FROM app_organizations;

   -- Enable management API
   UPDATE app_organizations
   SET entitled_management_api = TRUE
   WHERE id = 'actual_org_id';

2. Create environments with:

   • Redirect URL: https://your-kindo-domain/ssoready-callback
   • OAuth Redirect URI: https://your-kindo-domain/api/auth/callback/ssoready-saml

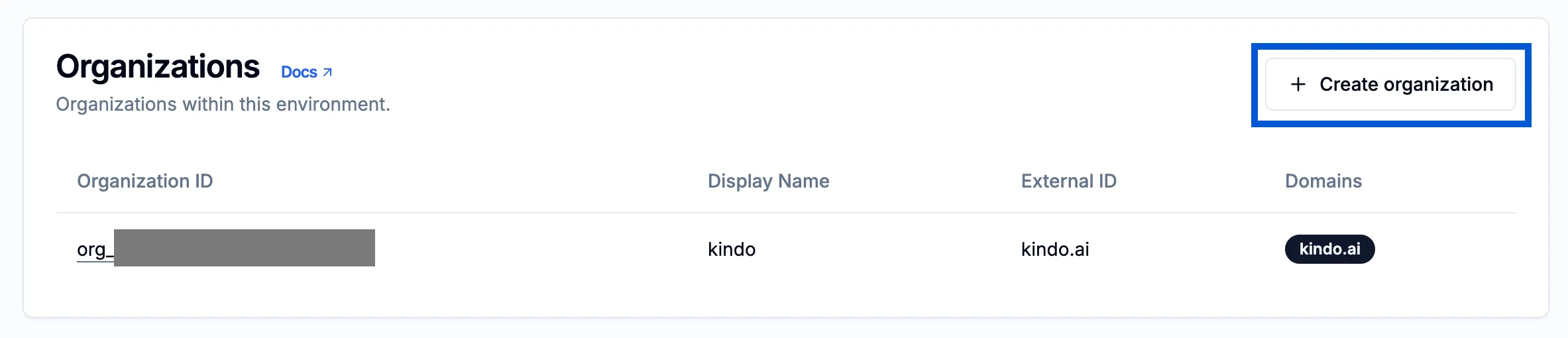

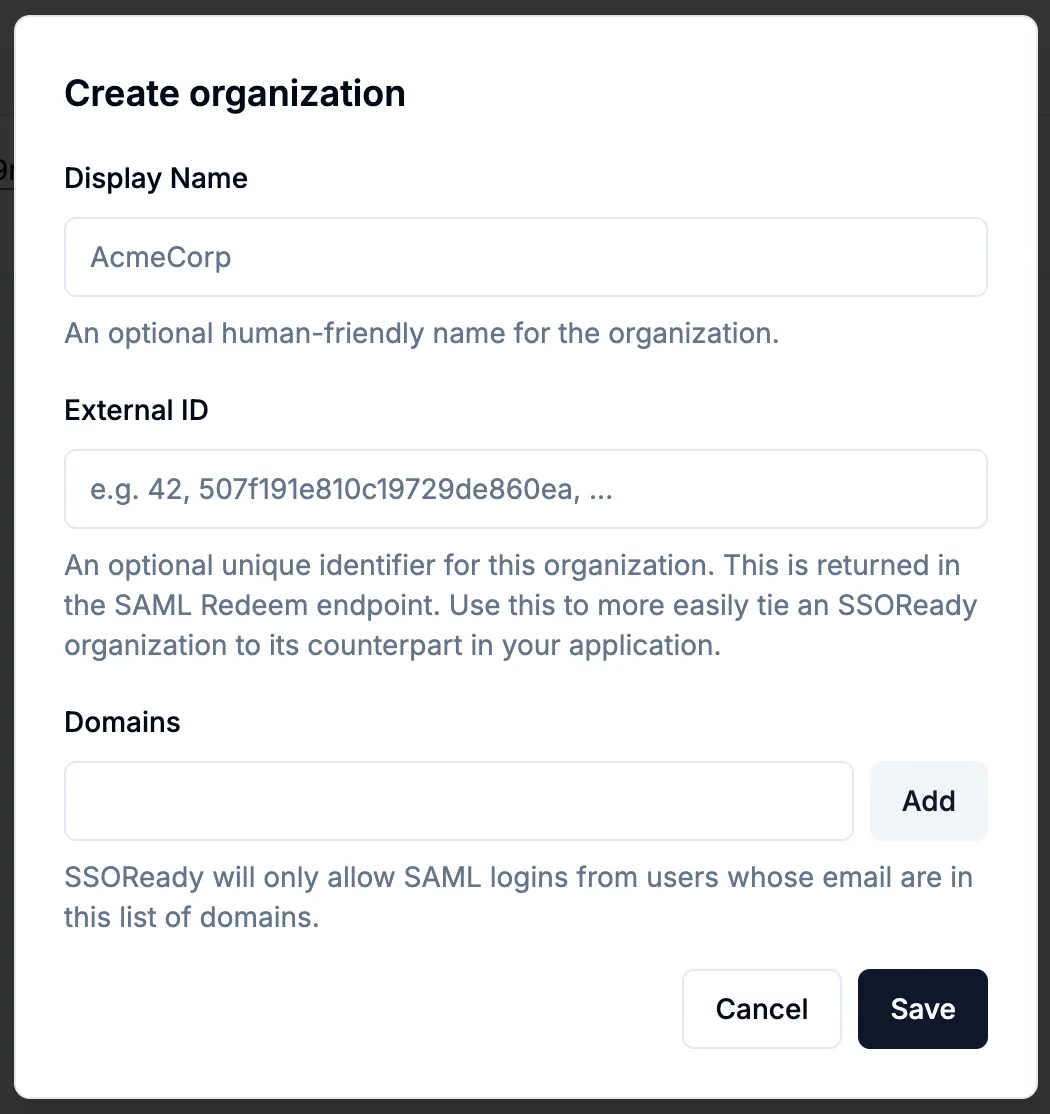

3. Create organizations within the environment. Add the domain to both External ID and Domains fields.

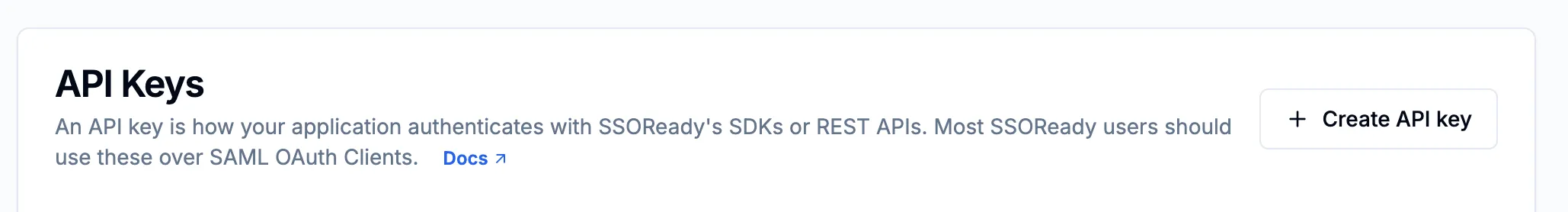

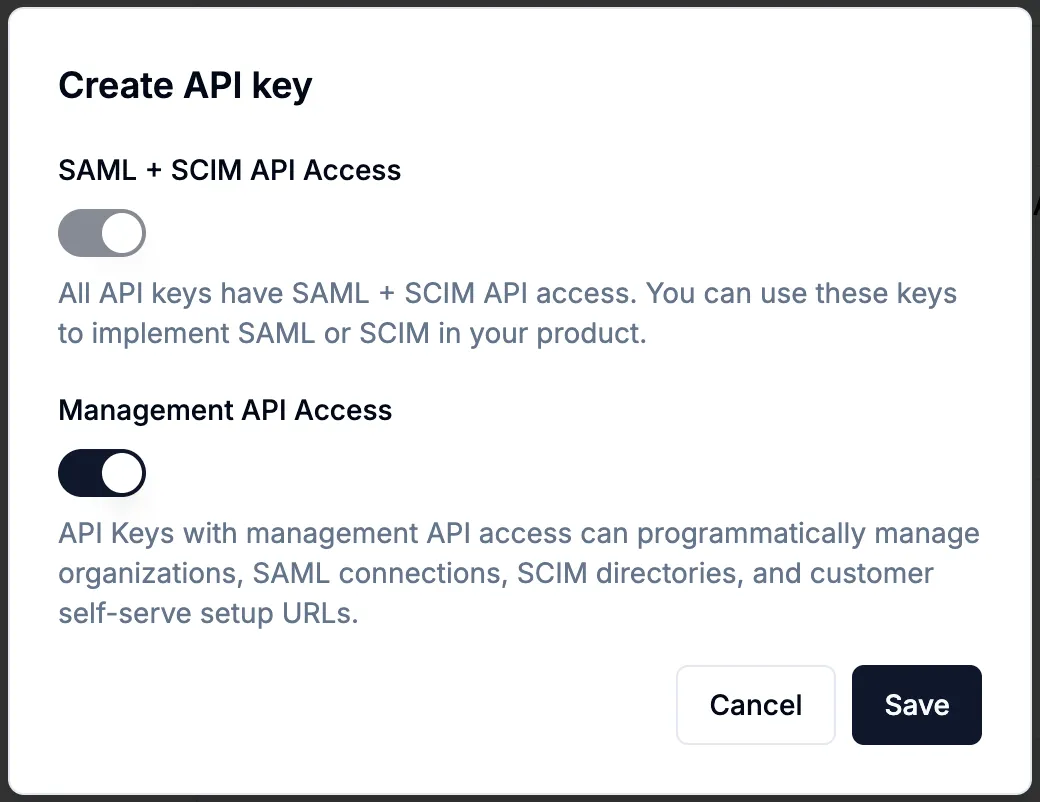

4. Create API keys: In the SSOReady app, navigate to API Keys and create a key with Management API Access enabled. Set the SSOREADY_API_KEY in the Next app.

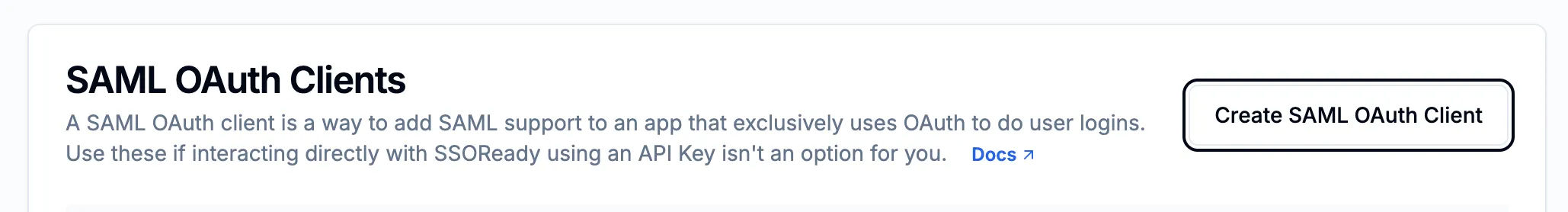

5. Create a SAML OAuth Client: Set SSOREADY_OAUTH_CLIENT_ID and SSOREADY_OAUTH_CLIENT_SECRET in the Next app.



Create Organization and User in Kindo

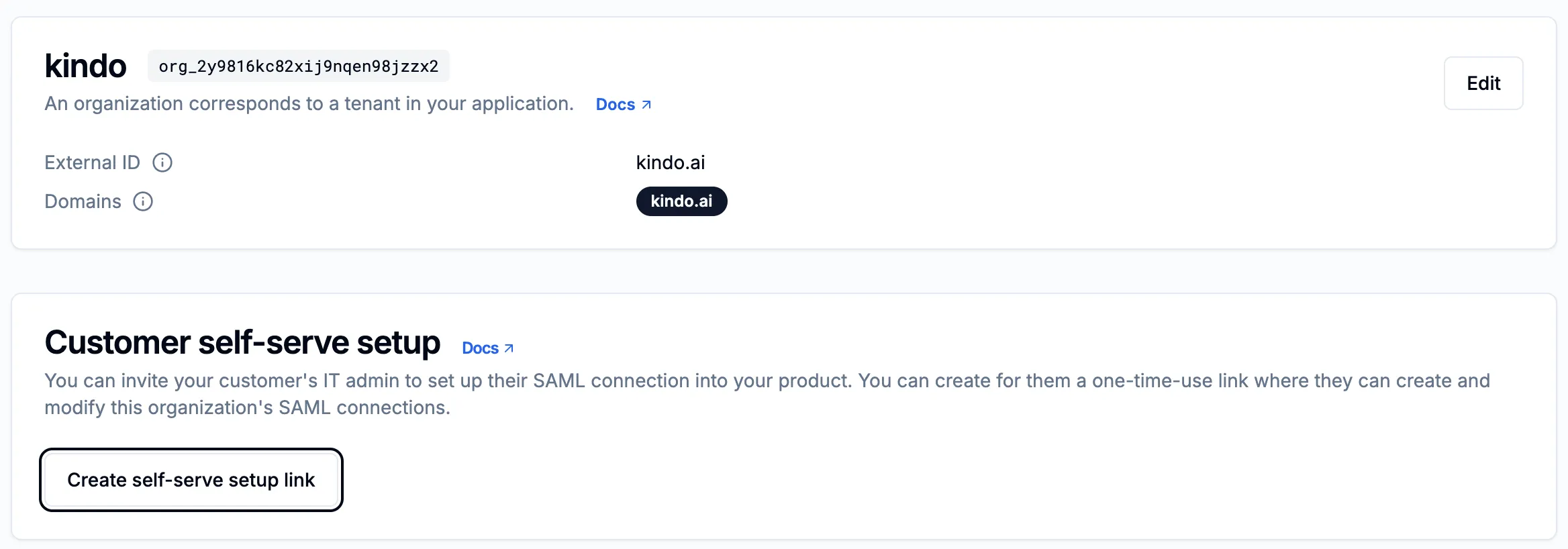

The SSOReady org ID is shown next to the company name in the SSOReady dashboard:

Run this SQL to create the first organization and admin user:

DO $$
DECLARE
    v_user_entity_id VARCHAR := gen_random_uuid()::VARCHAR;
    v_org_entity_id VARCHAR := gen_random_uuid()::VARCHAR;
    v_org_dlp_config_id VARCHAR := gen_random_uuid()::VARCHAR;
    v_org_settings_id VARCHAR := gen_random_uuid()::VARCHAR;
    v_credit_transaction_id VARCHAR := gen_random_uuid()::VARCHAR;
    v_sso_domain_id VARCHAR := gen_random_uuid()::VARCHAR;

    p_email VARCHAR := '[email protected]';       -- Replace
    p_name VARCHAR := 'Admin Name';                    -- Replace
    p_user_id VARCHAR := '<cuid>';                     -- Generate a CUID
    p_org_id VARCHAR := '<cuid>';                      -- Generate a CUID
    p_sso_ready_org_id VARCHAR := NULL;                -- SSOReady org ID
    p_sso_domain VARCHAR := NULL;                      -- SSO domain
BEGIN
    INSERT INTO "Entity" (id) VALUES (v_org_entity_id);
    INSERT INTO "Entity" (id) VALUES (v_user_entity_id);
    INSERT INTO "DlpFiltersConfig" (id) VALUES (v_org_dlp_config_id);
    INSERT INTO "OrgSettings" (id) VALUES (v_org_settings_id);

    INSERT INTO "Org" (
        id, "createdAt", "updatedAt", "paymentTier", "entityId",
        "baseDlpFiltersConfigId", "settingsId", "ssoReadyOrgId"
    ) VALUES (
        p_org_id, NOW(), NOW(), 'ENTERPRISE', v_org_entity_id,
        v_org_dlp_config_id, v_org_settings_id, p_sso_ready_org_id
    );

    IF p_sso_domain IS NOT NULL THEN
        INSERT INTO "OrgSsoDomain" (id, "orgId", domain, "createdAt", "updatedAt")
        VALUES (v_sso_domain_id, p_org_id, LOWER(p_sso_domain), NOW(), NOW());
    END IF;

    INSERT INTO "CreditTransaction" (
        id, "createdAt", "orgId", type, amount, "creditsPerUsd"
    ) VALUES (
        v_credit_transaction_id, NOW(), p_org_id,
        'INITIAL_ALLOTMENT', 2000000, 10000
    );

    INSERT INTO "User" (
        id, name, email, "orgId", "orgRole",
        "createdAt", "updatedAt", "idpId", "entityId"
    ) VALUES (
        p_user_id, p_name, p_email, p_org_id, 'Admin',
        NOW(), NOW(), NULL, v_user_entity_id
    );
END $$;

Establish SAML Connection

1. Log in to the SSOReady app (port 9082).

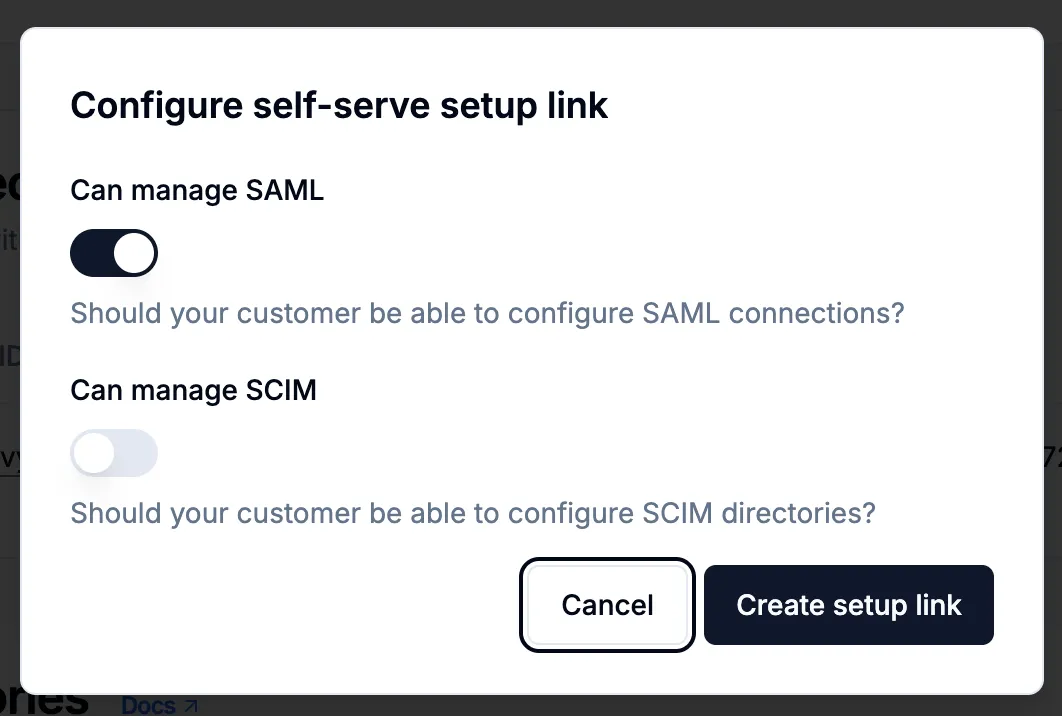

2. Create a self-serve setup link (without SCIM). Copy the one-time-use URL.





3. Navigate to the link and follow instructions.

   • Map attributes in your IdP (Entra, Okta, etc.). SSOReady does not rewrite incorrect incoming SAML attributes on your behalf.
   • Ensure the email claim is mapped correctly, or login/JIT provisioning will fail.
   • Set up firstName and lastName if names should appear in the Kindo app.

   Provider-specific setup guides (SSOReady):

   • Microsoft Entra ID

   • Okta

   • Google Workspace

   • JumpCloud

   • Ping Identity

   • ADFS (example)

     • Create a Relying Party Trust in ADFS using the SP Entity ID + ACS URL shown in the SSOReady SAML connection.

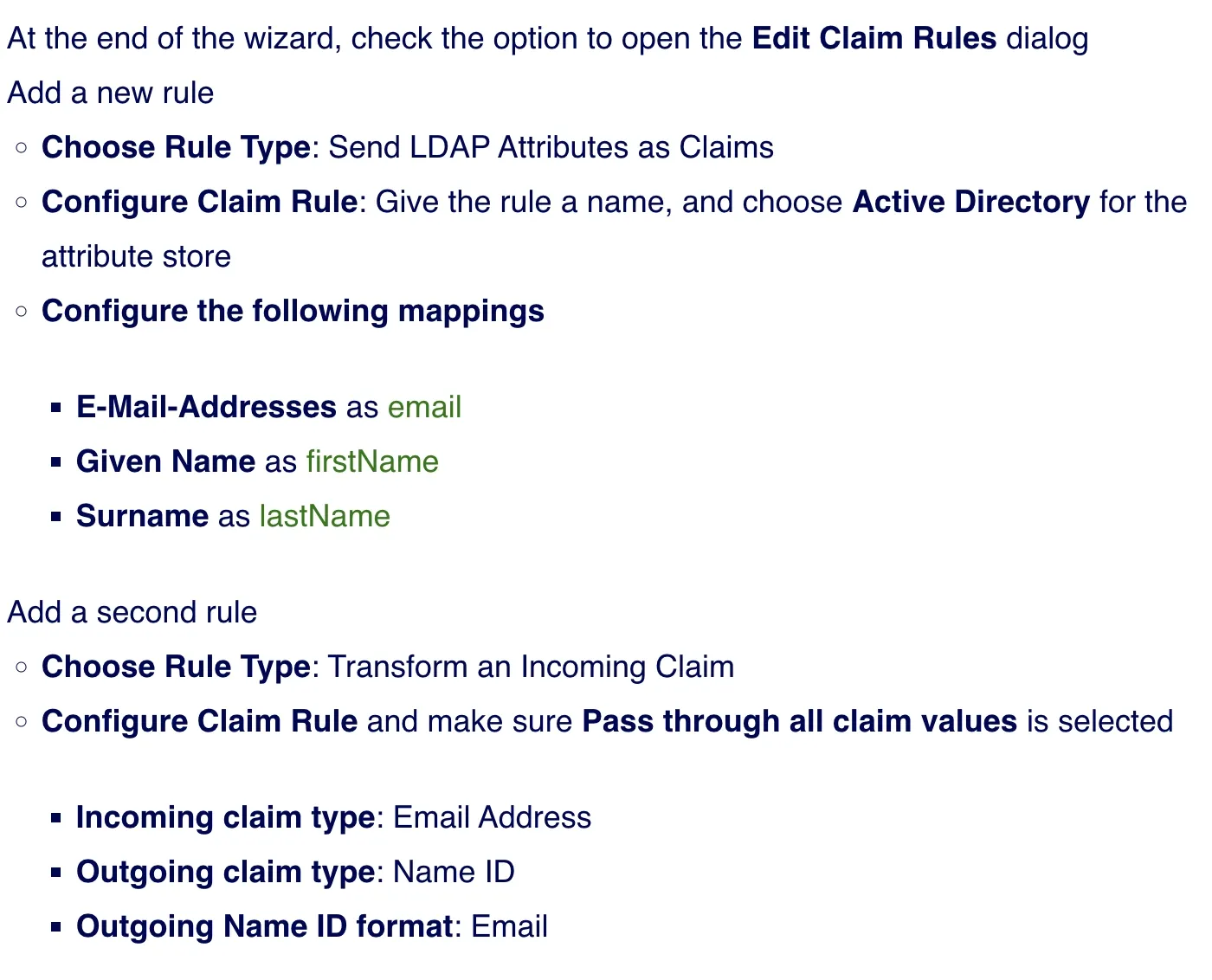

     • Configure claim rules (critical):
       • Send LDAP Attributes as Claims:
         • E-Mail-Addresses → email
         • Given Name → firstName
         • Surname → lastName

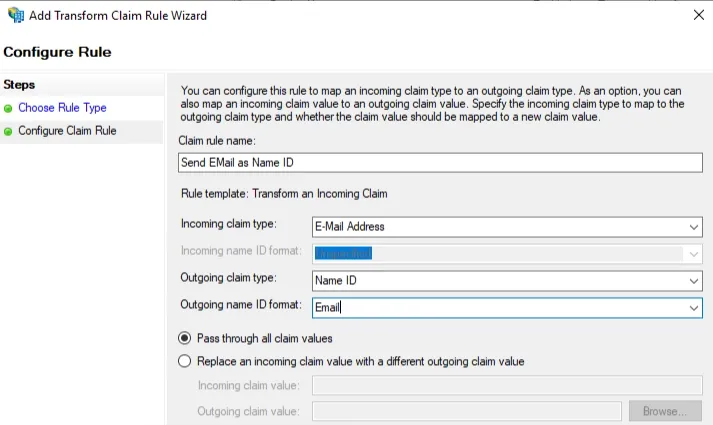

       • Transform an Incoming Claim:
         • Incoming claim type: E-Mail Address
         • Outgoing claim type: Name ID (format: Email)
         • Select Pass through all claim values

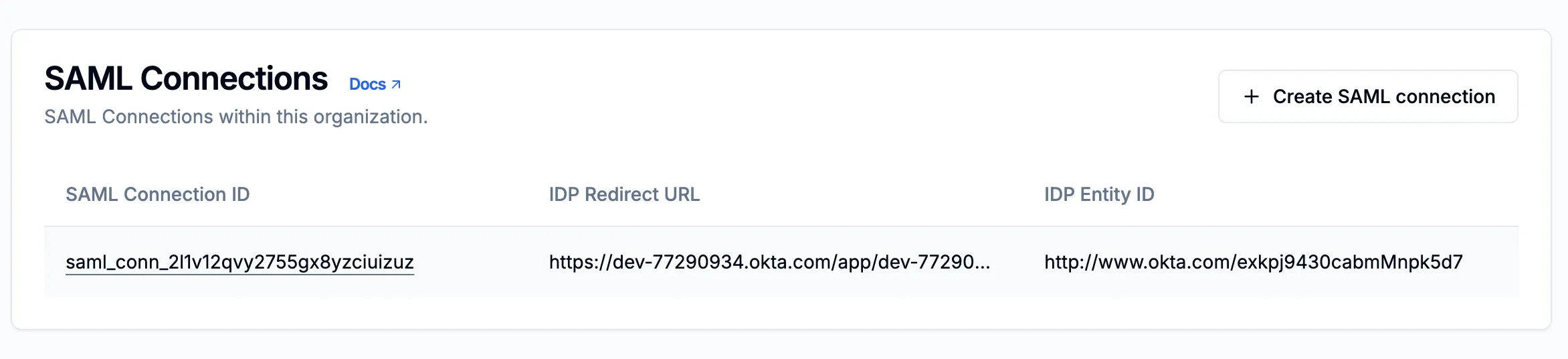

4. Verify the SAML connection appears in the listed connections.



5. SSO sign-in and JIT (Just-In-Time) provisioning are now enabled. Admins can toggle SSO enforcement.

Note

Kindo does not support IdP-initiated login. Use simulated IdP-initiated login via: https://your-kindo-domain/login?ssoDomain=yourdomain.com

Useful SQL Queries

Update SSOReady org ID:

UPDATE "Org"
SET "ssoReadyOrgId" = '<ssoReadyOrgId>'
WHERE id = '<kindoOrgId>';

Enforce SSO:

UPDATE "OrgSettings"
SET "ssoEnforced" = true
WHERE id = (SELECT "settingsId" FROM "Org" WHERE id = '<kindoOrgId>');

Add SSO domain:

INSERT INTO "OrgSsoDomain" (id, "orgId", domain, "createdAt", "updatedAt")
VALUES (gen_random_uuid(), '<kindoOrgId>', 'yourdomain.com', NOW(), NOW());
